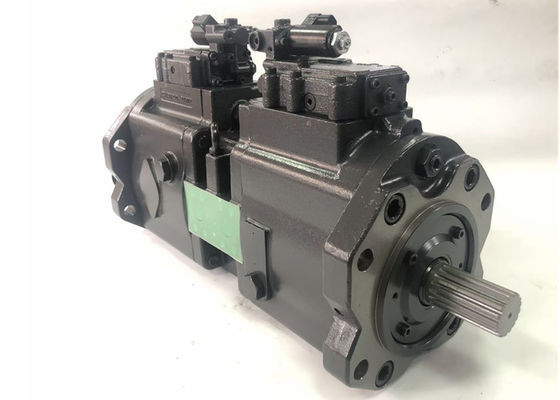

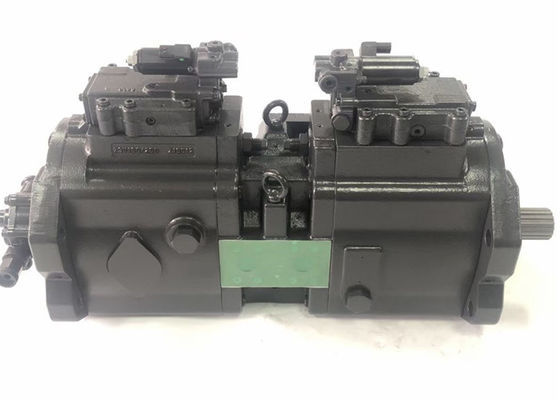

BAGGER-HYDRAULIKPUMPE-VERSAMMLUNG VOE 14625693 EC300D EC350D K5V200DTP MAIN-PUMPE
Produkt-Beschreibung
VOE14625693 Teile EC480D EC300D der Hydraulikpumpe .Heavy hydraulisch
EC480D EC300D
Teile auf Hydraulikpumpe der Gruppe:
| Position. | Teilnummer | Menge | Teilname | Kommentare |
|---|---|---|---|---|
|
VOE14625693 |
[1] |
Hydraulikpumpe |
|
|
|
1. |
VOE14574269 |
[2] |
Ventil |
|
|
2. |
VOE990546 |
[1] |
O-Ring |
|
|
3. |
VOE990738 |
[1] |
O-Ring |
|
|
4. |
VOE990547 |
[1] |
O-Ring |
|
|
|
VOE14596393 |
[1] |
Dichtung |
|
|
5. |
VOE914470 |
[2] |
Sicherungsring |
|
|
6. |
VOE14692340 |
[2] |
Ring |
|
|
7. |
VOE14692341 |
[2] |
Ring |
|
|
8. |
VOE14600699 |
[1] |
Dichtung |
|
|
9. |
VOE14692343 |
[2] |
O-Ring |
|
|
10. |
VOE14533606 |
[4] |
O-Ring |
|
|
11. |
VOE14533604 |
[12] |
O-Ring |
|
|
12. |
VOE14533618 |
[1] |
O-Ring |
|
|
13. |
VOE14533617 |
[2] |
O-Ring |
|
|
14. |
SA7223-00690 |
[2] |
O-Ring |
|
|
15. |
VOE14735328 |
[2] |
Augbolzen |
|
|
16. |
VOE14729945 |
[4] |
Frühlingsstift |
|
|
17. |
VOE14737981 |
[4] |
Nuss |
|
|
18. |
VOE14574556 |
[4] |
O-Ring |
|
|
19. |
VOE14533035 |
[2] |
O-Ring |
|
|
20. |
VOE14615353 |
[2] |
O-Ring |
|
|
21. |
SA7223-00420 |
[2] |
Halt |
|
|
22. |
VOE14536033 |
[2] |
Kolben |
|
|
23. |
VOE14622108 |
[27] |
Stecker |
|
|
24. |
VOE14701586 |
[2] |
Stecker |
|
|
25. |
VOE14577795 |
[12] |
Stecker |
|
|
26. |
VOE14729962 |
[8] |
Schraube |
|
|
27. |
VOE14730972 |
[8] |
Sechskantschraube |
|
|
28. |
VOE14723572 |
[1] |
Ventilblock |
|
|
29. |
VOE14723221 |
[2] |
Gehäuse |
|
|
30. |
VOE14512544 |
[1] |
Abdeckung |
|
|
31. |
VOE14692368 |
[1] |
Abdeckung |
|
|
32. |
VOE14723564 |
[2] |
Unterstützung |
|
|
33. |
SA7223-00210 |
[2] |
Platte |
|
|
34. |
SA7223-00180 |
[18] |
Frühling |
|
|
35. |
VOE14536027 |
[2] |
Platte |
|
|
36. |
SA7223-00060 |
[3] |
Distanzscheibe |
|
|
37. |
VOE14511980 |
[2] |
Lager |
|
|
38. |
VOE14511978 |
[1] |
Welle |
|
|
39. |
VOE14596495 |
[1] |
Welle |
|
|
40. |
VOE14536023 |
[2] |
Pin |
|
|
41. |
VOE14727839 |
[1] |
Ventil |
|
|
42. |
VOE14563795 |
[1] |
Zylinder |
|
|
43. |
VOE14563796 |
[1] |
Zylinder |
|
|
44. |
VOE14594327 |
[2] |
Kolben |
|
|
45. |
VOE14551525 |
[2] |
Pin |
|
|
46. |
VOE14510070 |
[2] |
Buchse |
|
|
|
VOE14748140 |
[1] |
Versiegelnde Ausrüstung |
|
